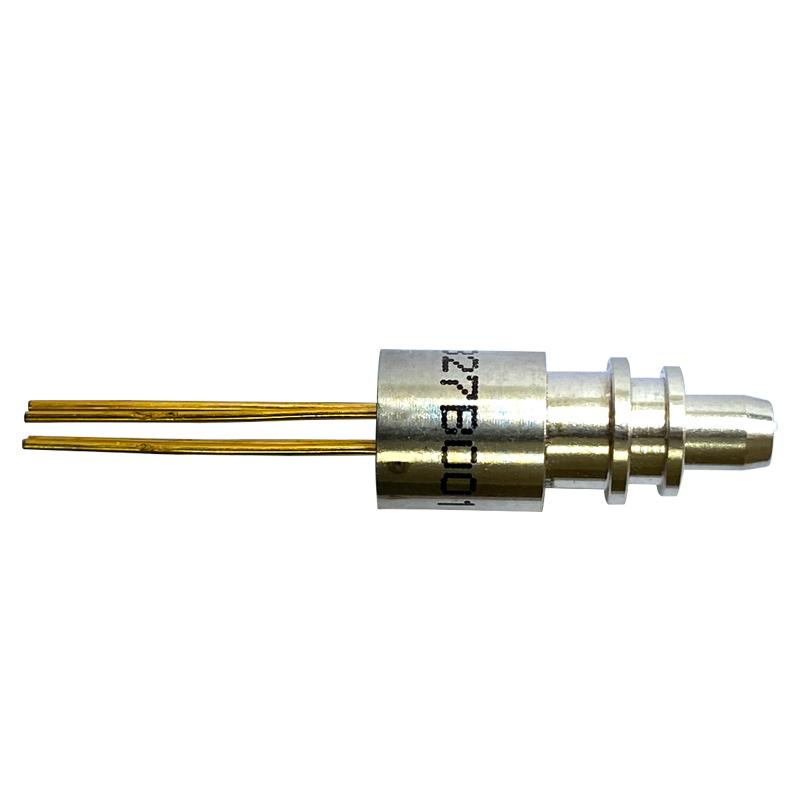

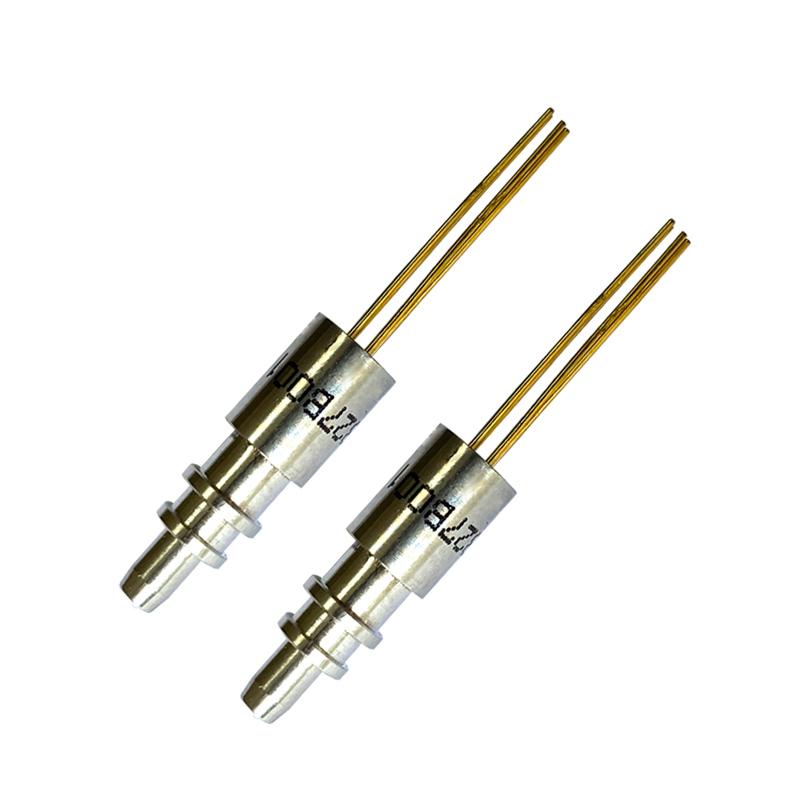

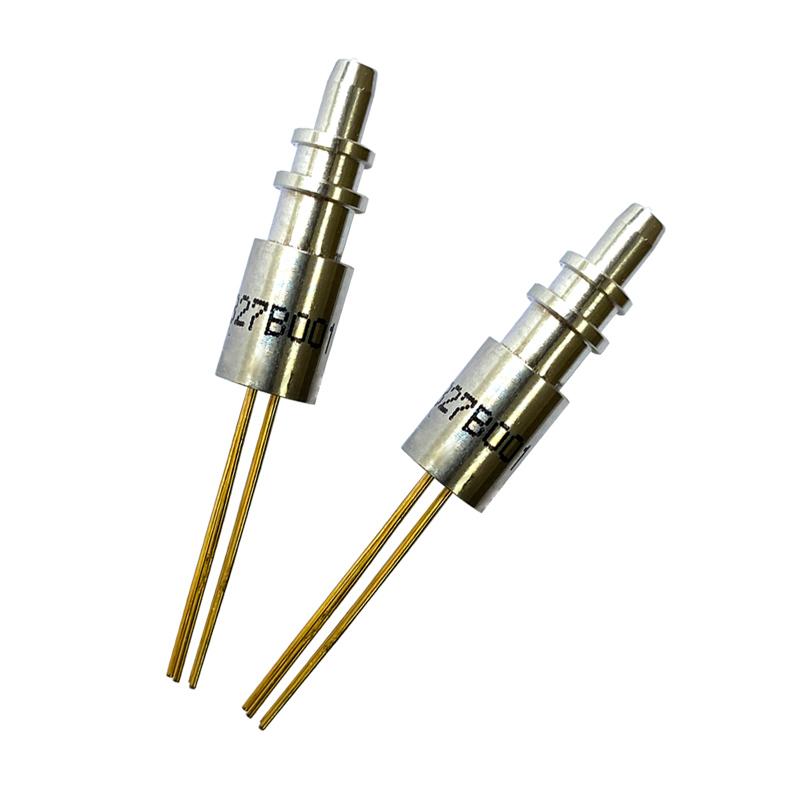

TOSA-LC 1.25Gbps 1310nm FP Transmitter Optical Subassembly

TOSA-LC 1.25Gbps 1310nm FP Transmitter Optical Subassembly

Features:

● Low Operating Current

● Low Threshold Current

● Excellent Reliability

● Industrial standard TO-56 package

● LC Receptacle

Applications:

● Digital Optical Communication

● Optical LAN

Wavelength :
1310nm
Rate :
1.25G
Power :
0.8mW

Inquiry now Download

Product Details

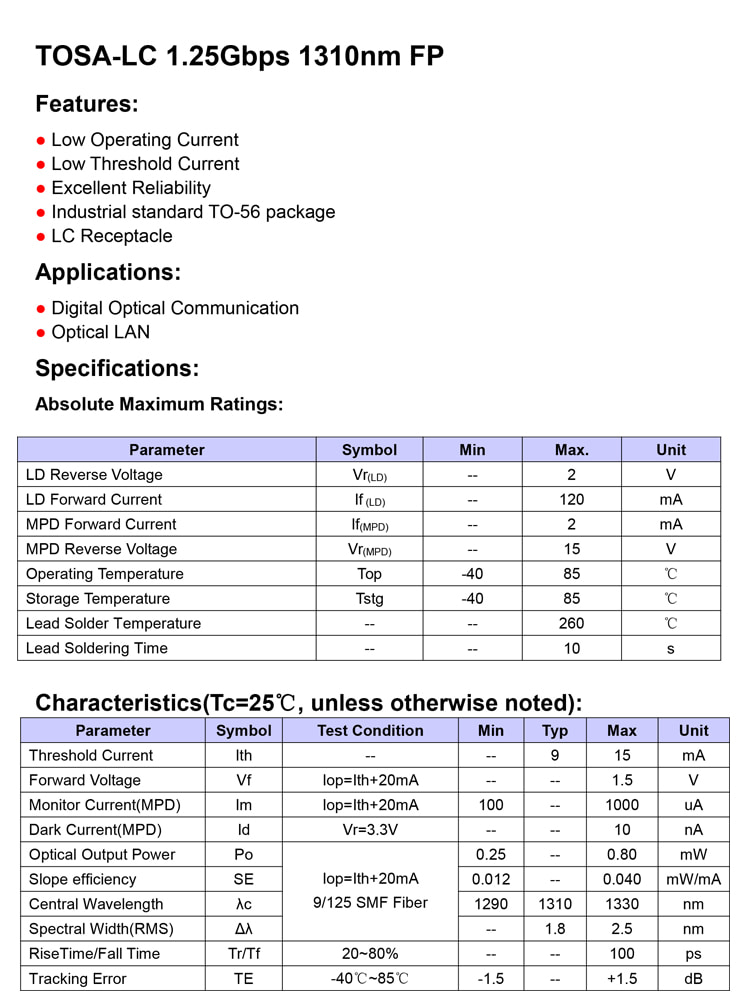

TOSA-LC 1.25Gbps 1310nm FP

Features:

● Low Operating Current

● Low Threshold Current

● Excellent Reliability

● Industrial standard TO-56 package

● LC Receptacle

Applications:

● Digital Optical Communication

● Optical LAN

Specifications:

Absolute Maximum Ratings:

Parameter	Symbol	Min	Max.	Unit
LD Reverse Voltage	Vr(LD)	--	2	V
LD Forward Current	If (LD)	--	120	mA
MPD Forward Current	If(MPD)	--	2	mA
MPD Reverse Voltage	Vr(MPD)	--	15	V
Operating Temperature	Top	-40	85	℃
Storage Temperature	Tstg	-40	85	℃
Lead Solder Temperature	--	--	260	℃
Lead Soldering Time	--	--	10	s

Characteristics(Tc=25℃, unless otherwise noted):

Parameter	Symbol	Test Condition	Min	Typ	Max	Unit
Threshold Current	Ith	--	--	9	15	mA
Forward Voltage	Vf	Iop=Ith+20mA	--	--	1.5	V
Monitor Current(MPD)	Im	Iop=Ith+20mA	100	--	1000	uA
Dark Current(MPD)	Id	Vr=3.3V	--	--	10	nA
Optical Output Power	Po	Iop=Ith+20mA 9/125 SMF Fiber	0.25	--	0.80	mW
Slope efficiency	SE		0.012	--	0.040	mW/mA
Central Wavelength	λc		1290	1310	1330	nm
Spectral Width(RMS)	Δλ		--	1.8	2.5	nm
RiseTime/Fall Time	Tr/Tf	20~80%	--	--	100	ps
Tracking Error	TE	-40℃~85℃	-1.5	--	+1.5	dB
